HSS Square Hole Drill Bit for Wood
HSS Square Hole Drill Bit for Wood
Back to products
Carbide Burr
Carbide Burr

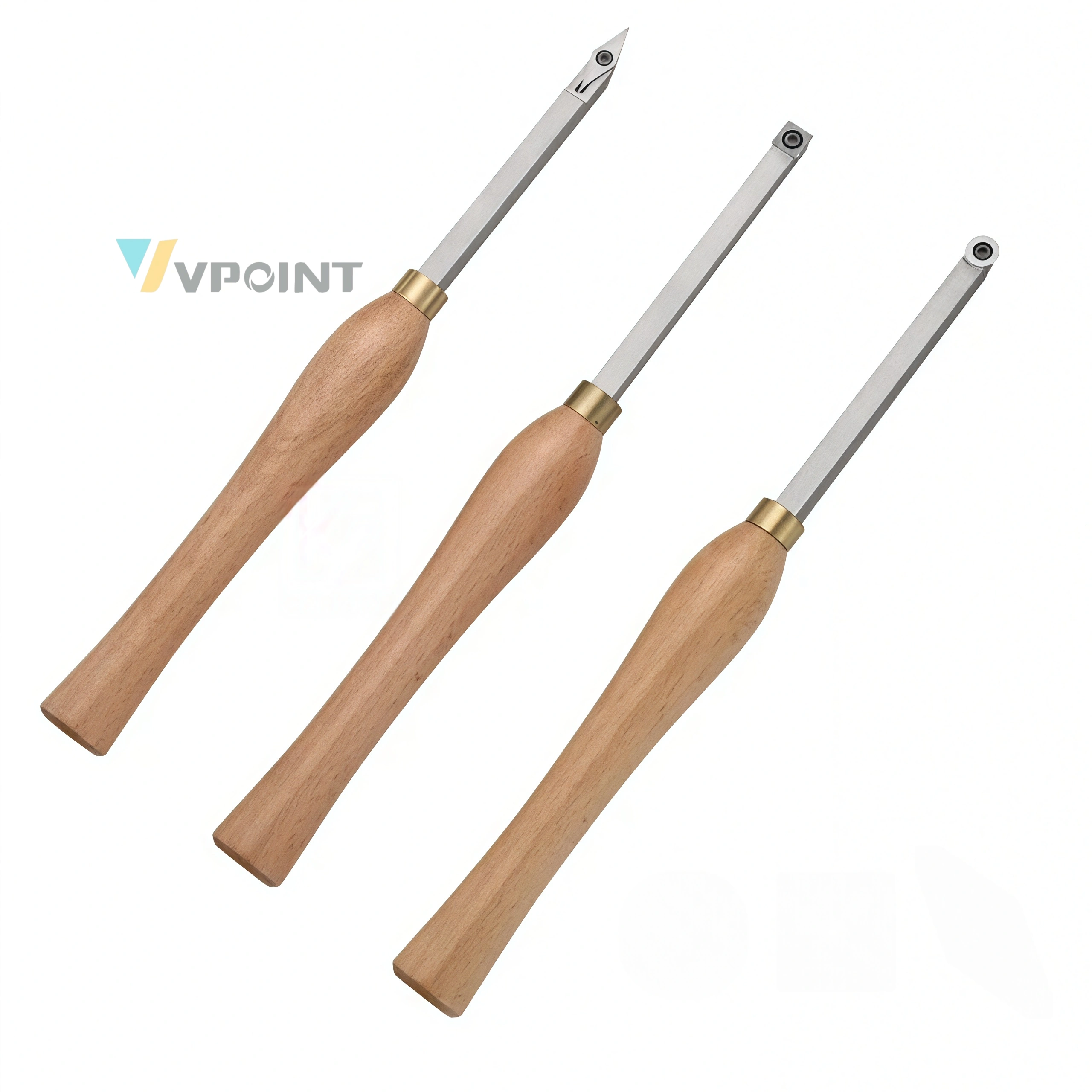

Precision Carbide Wood Lathe Chisel Set for CNC Turning

This professional-grade chisel set features hardened carbide cutting edges engineered for high-speed woodturning operations. Designed to withstand continuous feeding, it delivers consistent chip forma…

Contact us

Precision Carbide Wood Lathe Chisel Set for CNC Turning. Factory-direct from VPOINT TOOL — precision-ground carbide and PCD tooling for woodworking CNC machines, edge banding lines and panel processing.

Specification Value
Material Solid tungsten carbide cutters, hardwood handles
Type CNC wood lathe chisel set
Typical application CNC woodworking, furniture and cabinet production
Design [待补充：刃数/角度/孔型，需工厂确认]
Grade VP08 (factory-exclusive series)
MOQ 10 pcs / 50 pcs / 100 pcs (by size and type)
Lead time 7–10 days (standard), up to 15 days (custom or bulk)
Quality control 100% inspected before shipment; sample test report available
Compatible machines CNC machining centres — specify brand & model when enquiring
Suitable materials MDF / laminate / solid wood / plywood

Why buy from the factory

  • Replaceable-knife systems cut running cost and machine downtime.
  • OEM / ODM custom geometry from your drawings or samples.
  • Every order 100% inspected before shipment; sample test report available.

评价

目前还没有评价

成为第一个“Precision Carbide Wood Lathe Chisel Set for CNC Turning” 的评价者

您的邮箱地址不会被公开。 必填项已用 * 标注

VEVOR Wood Lathe Chisel Set, 3 PCS — Application Guide

Reference: VEVOR official product manual, Model WD350-3. Source: vevor.com

Product Overview

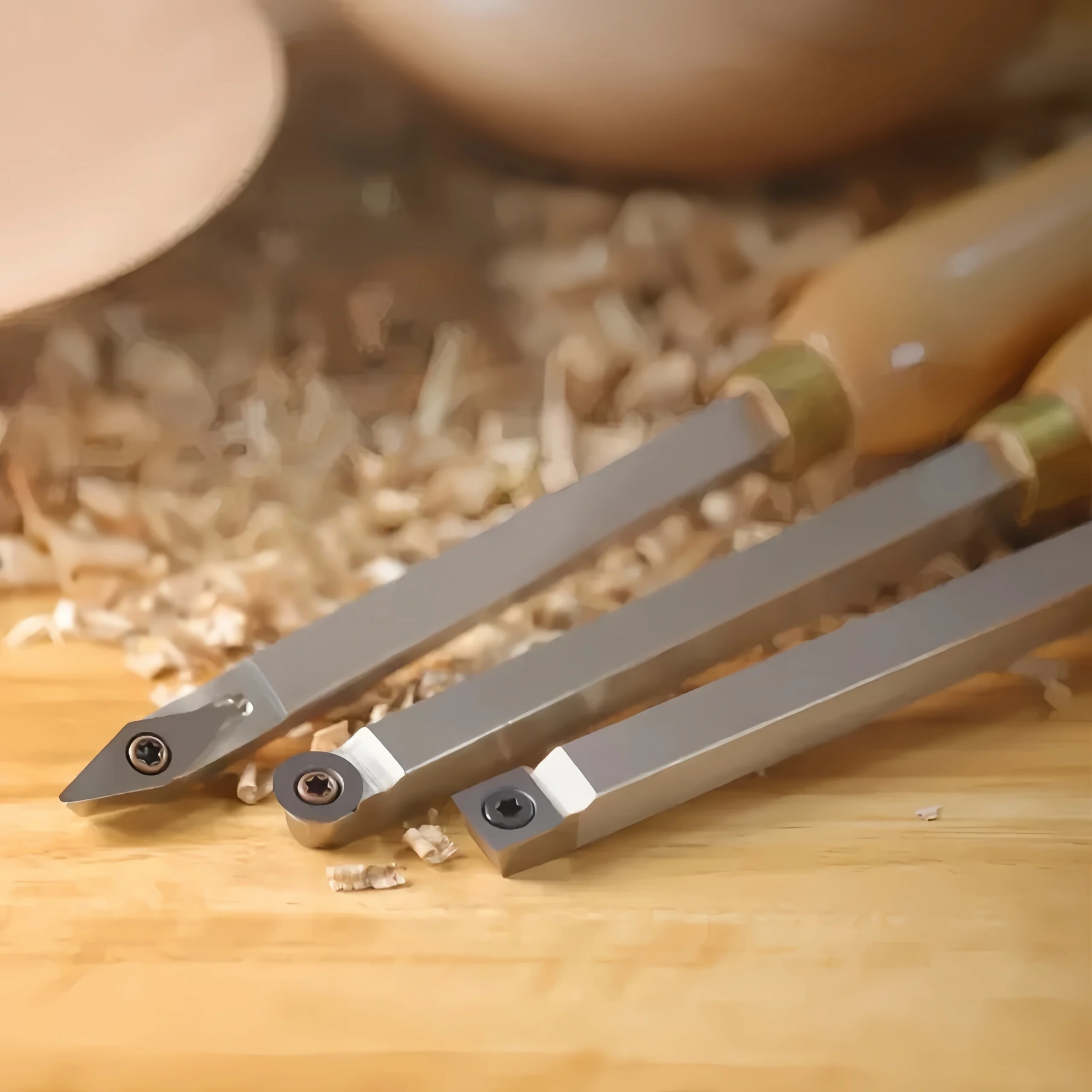

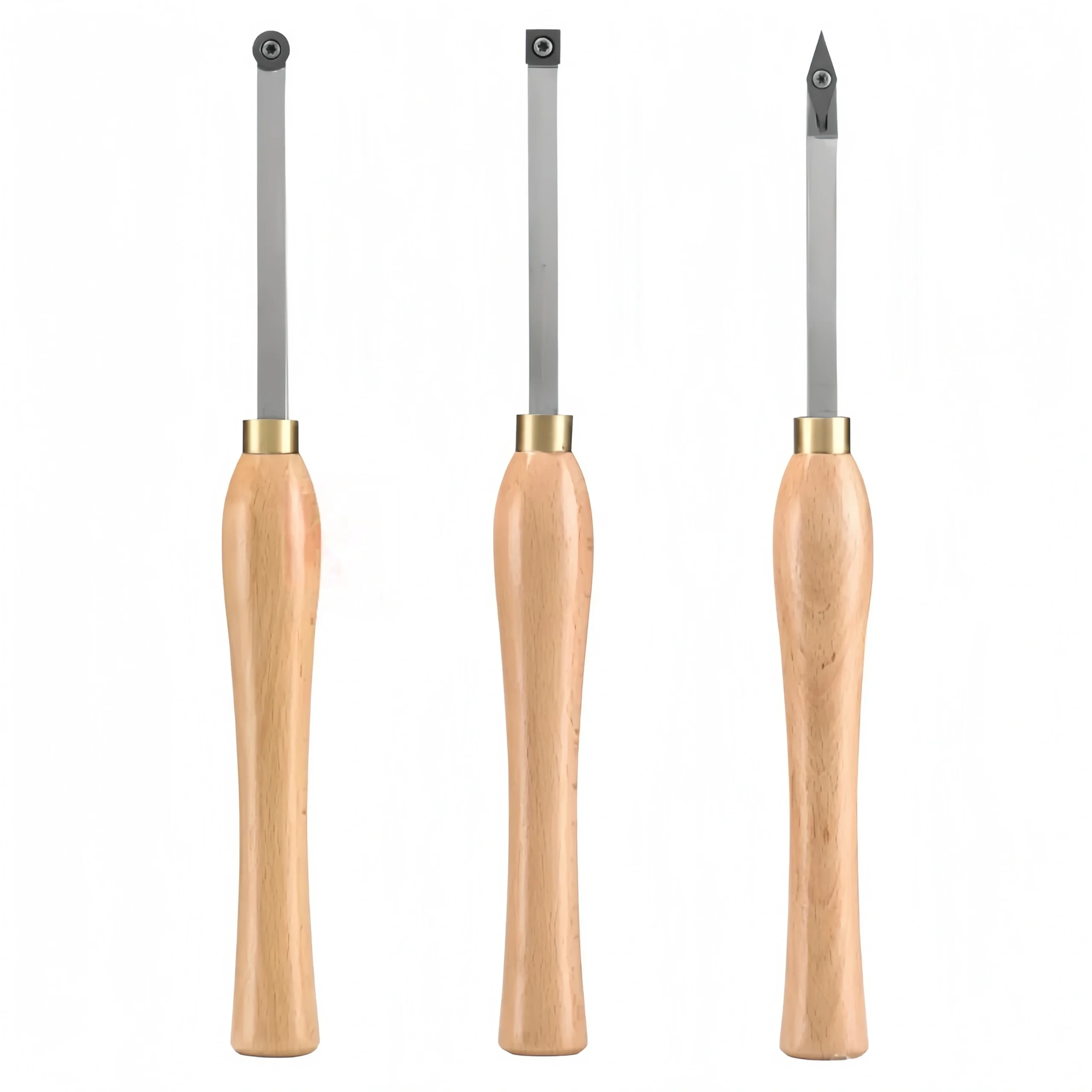

This 3-piece carbide woodturning chisel set includes a rougher (square blade), a finisher (round blade), and a detailer (diamond blade). Each tool features a quality alloy shaft, beech handle, and sharp carbide tip for long service life.

Key Specifications

  • Handle Length: 7.87 in / 200 mm
  • Total Length: 12.6 in / 320 mm
  • Weight: 1.87 lbs / 0.85 kg
  • Blade Types: Square, Round, Diamond carbide cutters
  • Storage Box: 15.55 x 5.91 x 3.15 in (included)

How to Use

  1. Inspect before use — Check all blades and handles for damage. Do not use damaged tools.
  2. Install securely — Mount the chisel firmly on the lathe tool rest. Ensure the tool is stable and will not shift during operation.

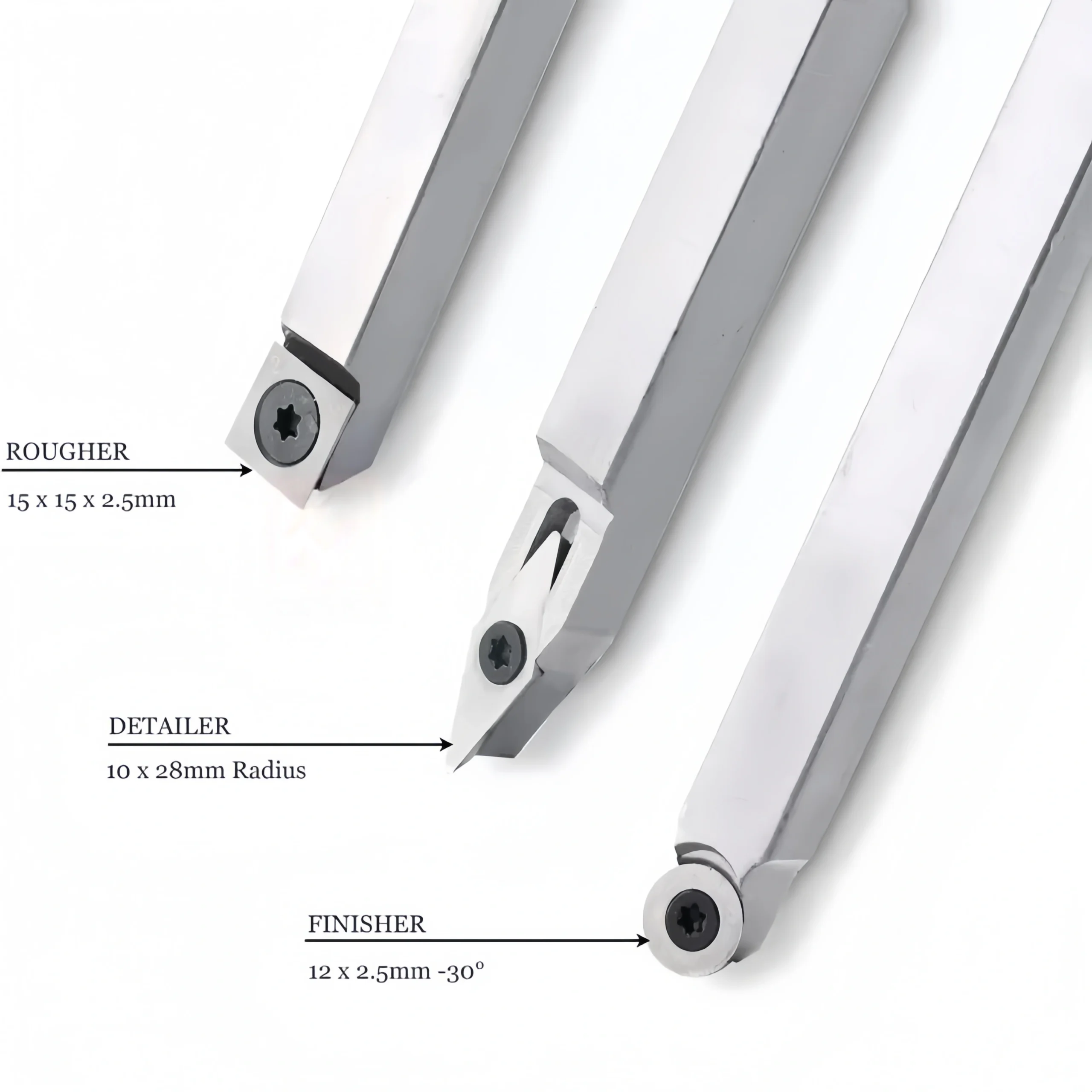

  3. Select the right blade — Use the square blade for roughing and initial shaping, the round blade for finishing and smoothing, and the diamond blade for detail work, grooves, and coves.
  4. Turn on the lathe — Start at an appropriate speed for your workpiece diameter. Hold the chisel firmly with both hands and bring it into contact with the spinning wood.
  5. Cut smoothly — Let the sharp carbide edge do the work. Avoid excessive force. The three blade types deliver clean cuts and reduce the need for post-processing and sanding.
  6. Replace dull blades — When a blade loses sharpness, use the included wrench to loosen the bolt, rotate the blade to a fresh edge, or replace it entirely.

Safety Precautions

  • Wear protective goggles and personal protective equipment at all times.
  • Keep hands and loose clothing away from the spinning workpiece and cutting edge.
  • Do not use the chisel head as a hammer.
  • Maintain a clean, dry, and well-ventilated workspace.
  • Keep this product away from children.
  • Use only after receiving proper training on lathe operation.

Care and Maintenance

  • Keep tools clean after each use to prolong service life.
  • Store in the included storage box to prevent damage during transport.
  • The round shank fits standard electric lathes and drilling rigs for easy installation.

Content sourced from VEVOR official product manual and specifications.
