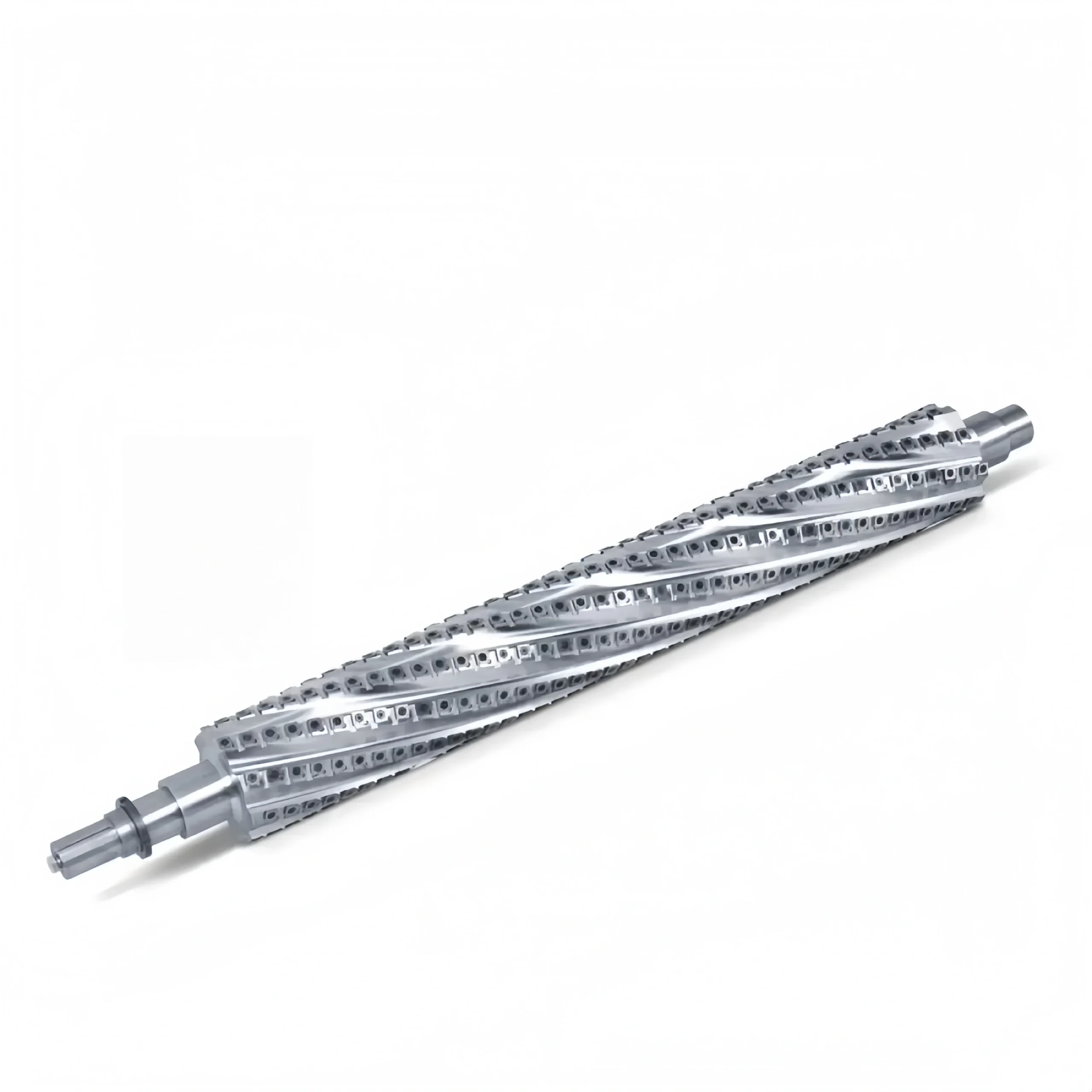

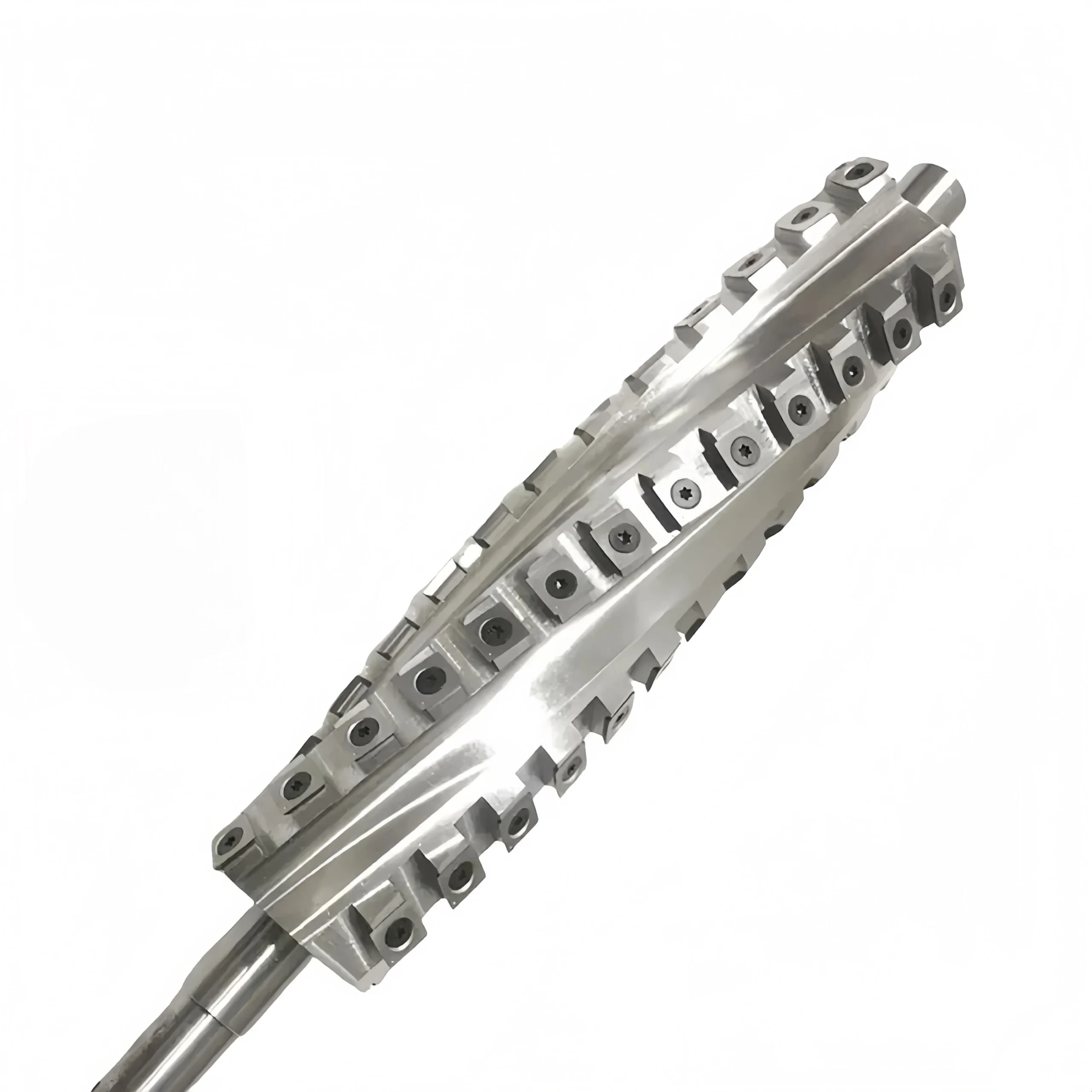

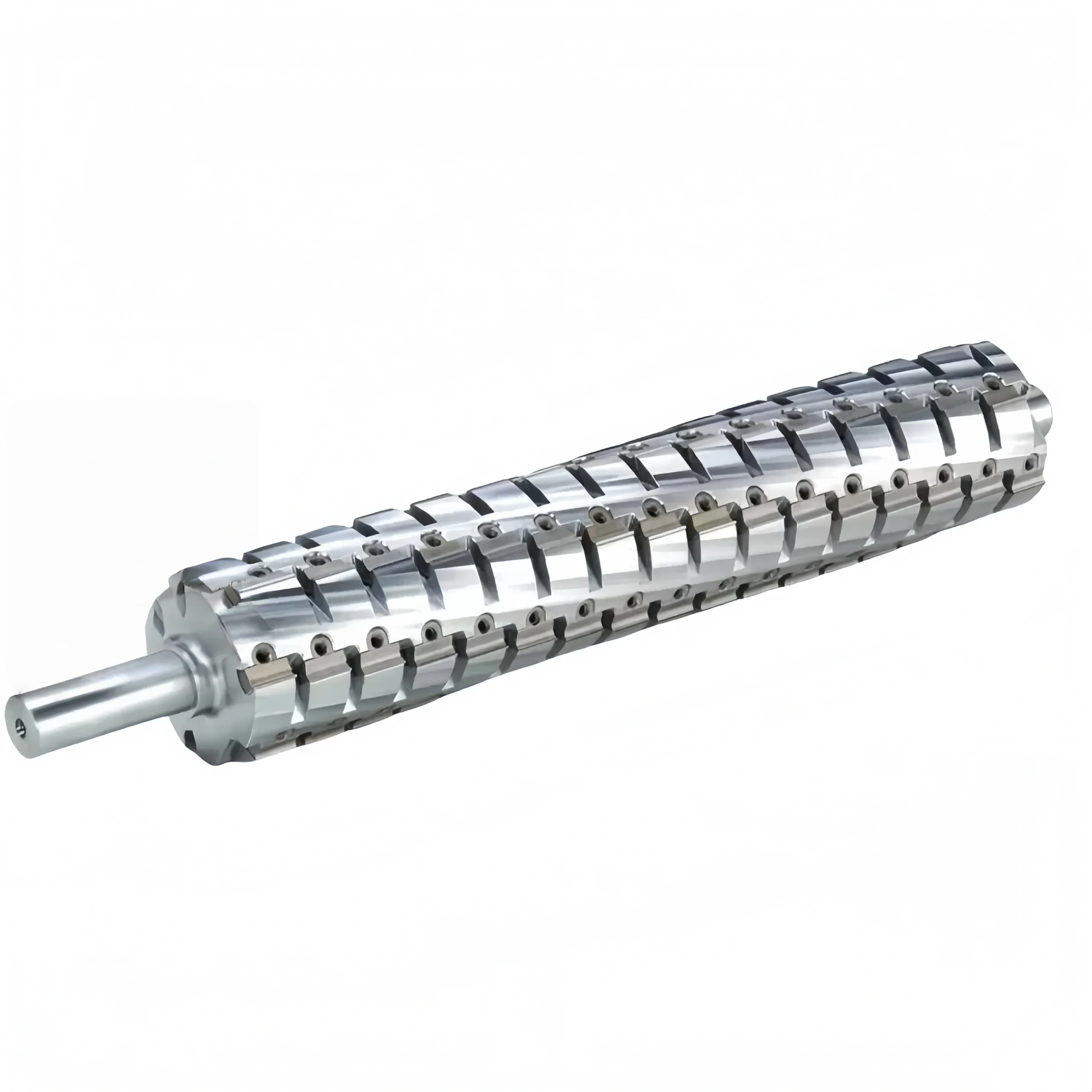

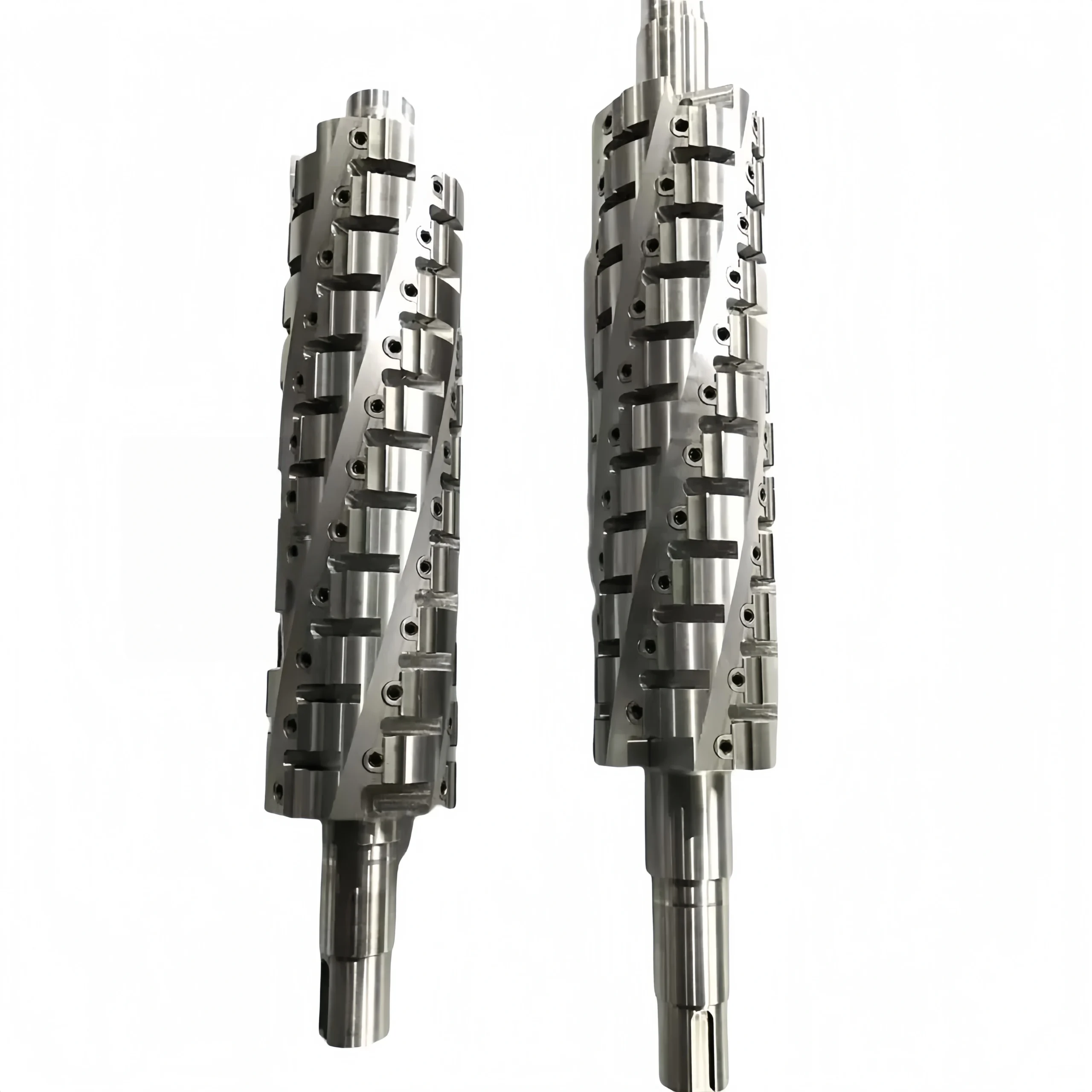

Light Duty Helical Spiral Cutter Head with Replaceable Inserts for Precision Woodworking

The Light Duty Helical Spiral Cutter Head features a robust spiral design that minimizes vibration and ensures smooth, high-quality cuts in light-duty applications. Its replaceable insert system allow…

Contact us

Light Duty Helical Spiral Cutter Head with Replaceable Inserts for Precision Woodworking. Built around replaceable carbide insert knives: when the edge wears, swap or flip the insert instead of replacing the whole tool — consistent cut quality at a fraction of the running cost.

Specification Value
Material Tungsten carbide (HM) replaceable inserts on steel body
Type Helical spiral cutterhead with replaceable inserts
Typical application Spiral planing / milling heads for jointers and CNC
Design [待补充：刃数/可逆性及轴承规格，需工厂确认]
Grade VP08 (factory-exclusive series)
MOQ 10 pcs / 50 pcs / 100 pcs (by size and type)
Lead time 7–10 days (standard), up to 15 days (custom or bulk)
Quality control 100% inspected before shipment; sample test report available
Compatible machines CNC machining centres — specify brand & model when enquiring
Suitable materials MDF / laminate / solid wood / plywood

Why replaceable inserts

  • Swap a fresh insert edge in seconds — no regrinding, no machine downtime.
  • Indexable edges keep the cutting geometry identical across every replacement.
  • Only the insert is consumed; the body and holder last for years.

How to use

  • Seat the insert flat against the holder face and torque the screws evenly.
  • For reversible inserts, flip to the fresh edge before replacing.
  • Match feed rate to material; carbide and PCD hold their edge longest at correct speeds.

评价

目前还没有评价

成为第一个“Light Duty Helical Spiral Cutter Head with Replaceable Inserts for Precision Woodworking” 的评价者

您的邮箱地址不会被公开。 必填项已用 * 标注

Light Duty Helical Spiral Cutter Head — Application Guide

Reference: Standard cutter head specifications. Source: manufacturer product data.

Product Overview

This cutter head is engineered for high-performance wood machining with indexable carbide inserts. The design provides smooth cutting action, reduced vibration, and long service life.

Key Specifications

  • Type: Cutter head with indexable carbide inserts
  • Application: Planers, jointers, shapers, and CNC machines
  • Insert Material: Tungsten carbide for durability
  • Cutting Action: Smooth, consistent cuts with minimal tearout

How to Use

  1. Install the cutter head — Mount the cutter head on your machine spindle according to the manufacturer's instructions.
  2. Set depth of cut — Adjust the cutter head height for your desired cut depth. Start with light passes.
  3. Feed the workpiece — Feed the board through the machine at a steady rate for smooth, consistent results.
  4. Monitor performance — Check cut quality and adjust feed speed as needed.
  5. Rotate or replace inserts — When insert edges dull, rotate to a fresh edge or replace with new inserts.

Applications

  • Surface planing and jointing
  • Profiling and molding
  • Heavy material removal in industrial woodworking
  • Precision machining of wood panels

Safety Precautions

  • Wear safety glasses and hearing protection during operation.
  • Ensure the cutter head is properly installed and balanced.
  • Keep hands away from the infeed and outfeed areas.
  • Use push blocks for narrow or short workpieces.

Care and Maintenance

  • Inspect inserts regularly for wear or damage.
  • Rotate or replace dull inserts promptly.
  • Clean the cutter head after use to remove resin buildup.
  • Lubricate bearings according to the machine manufacturer's schedule.

Content sourced from standard cutter head specifications and manufacturer data.
