首页 Woodworking Tools Wood Drill Bits CNC Hinge Boring Bits: Precision Machining for Wood with Indexable Inserts

High-Speed Single Spiral Flute Upcut End Mill for Wood & Plastics

Back to products

Spiral Flush Trim Bit with Double Bearing for Chipboard and Solid Wood

CNC Hinge Boring Bits: Precision Machining for Wood with Indexable Inserts

These durable hinge boring bits feature replaceable indexable inserts designed specifically for high-speed CNC milling of wood hinges and structural joints. They deliver consistent, clean cuts that el…

Contact us

Share:

描述

用户评价 (0)

Product Manual

CNC Hinge Boring Bits: Precision Machining for Wood with Indexable Inserts. Built around replaceable carbide insert knives: when the edge wears, swap or flip the insert instead of replacing the whole tool — consistent cut quality at a fraction of the running cost.

Specification Value

Material Tungsten carbide (HM) replaceable inserts on steel body

Type TCT insert drill / boring bit

Typical application Hinge and dowel boring on CNC and boring machines

Design [待补充：刃数/可逆性及轴承规格，需工厂确认]

Grade VP08 (factory-exclusive series)

MOQ 10 pcs / 50 pcs / 100 pcs (by size and type)

Lead time 7–10 days (standard), up to 15 days (custom or bulk)

Quality control 100% inspected before shipment; sample test report available

Compatible machines CNC machining centres — specify brand & model when enquiring

Suitable materials MDF / laminate / solid wood / plywood

Why replaceable inserts

Swap a fresh insert edge in seconds — no regrinding, no machine downtime.

Indexable edges keep the cutting geometry identical across every replacement.

Only the insert is consumed; the body and holder last for years.

How to use

Seat the insert flat against the holder face and torque the screws evenly.

For reversible inserts, flip to the fresh edge before replacing.

Match feed rate to material; carbide and PCD hold their edge longest at correct speeds.

评价

目前还没有评价

成为第一个“CNC Hinge Boring Bits: Precision Machining for Wood with Indexable Inserts” 的评价者取消回复
您的邮箱地址不会被公开。必填项已用 * 标注
您的评级 *
您的评价 *
名称 *

电子邮件 *

在此浏览器中保存我的显示名称、邮箱地址和网站地址，以便下次评论时使用。

CNC Hinge Boring Bits For Wood — Application Guide

Reference: Standard drill bit specifications. Source: manufacturer product data.

Product Overview

This drill bit is precision-engineered for clean, accurate holes in wood and wood-based materials. The carbide or HSS cutting edges provide sharp, long-lasting performance.

Key Specifications

Material: Solid carbide or high-speed steel (HSS)

Application: Drill presses, CNC machines, and handheld drills

Compatible Materials: Hardwood, softwood, MDF, particleboard, and plywood

Cutting Action: Clean entry and exit with minimal splintering

How to Use

Select the correct size — Choose the bit diameter that matches your hole requirement.

Install the bit — Insert the shank into the chuck or collet and tighten securely.

Set drilling depth — Adjust the depth stop for consistent hole depth.

Position the workpiece — Clamp the workpiece firmly to prevent movement.

Drill the hole — Start the machine and feed the bit into the wood at a steady rate. Use a backing board to prevent tearout on exit.

Applications

Precision hole drilling in wood and panels

Dowel hole boring for joinery

Hardware installation — hinges, handles, and locks

CNC machining of wood components

Safety Precautions

Wear safety glasses during all drilling operations.

Ensure the workpiece is securely clamped before drilling.

Keep hands away from the rotating bit.

Do not force the bit — let the cutting edges do the work.

Care and Maintenance

Inspect cutting edges regularly for wear or chipping.

Clean the bit after use to remove resin and dust.

Store in a protective case to prevent edge damage.

Replace the bit when hole quality deteriorates.

Content sourced from standard drill bit specifications and manufacturer data.

RELATED PRODUCTS

Quick view

Add to wishlist

HSS Square Hole Drill Bit for Wood

Woodworking Tools, Wood Drill Bits

Inquire Now

Engineered for precision square hole drilling in hardwoods and softwoods, this bit delivers clean, straight cuts that minimize waste and reduce finishing labor. Its durable construction ensures consis...

Hot

Quick view

Add to wishlist

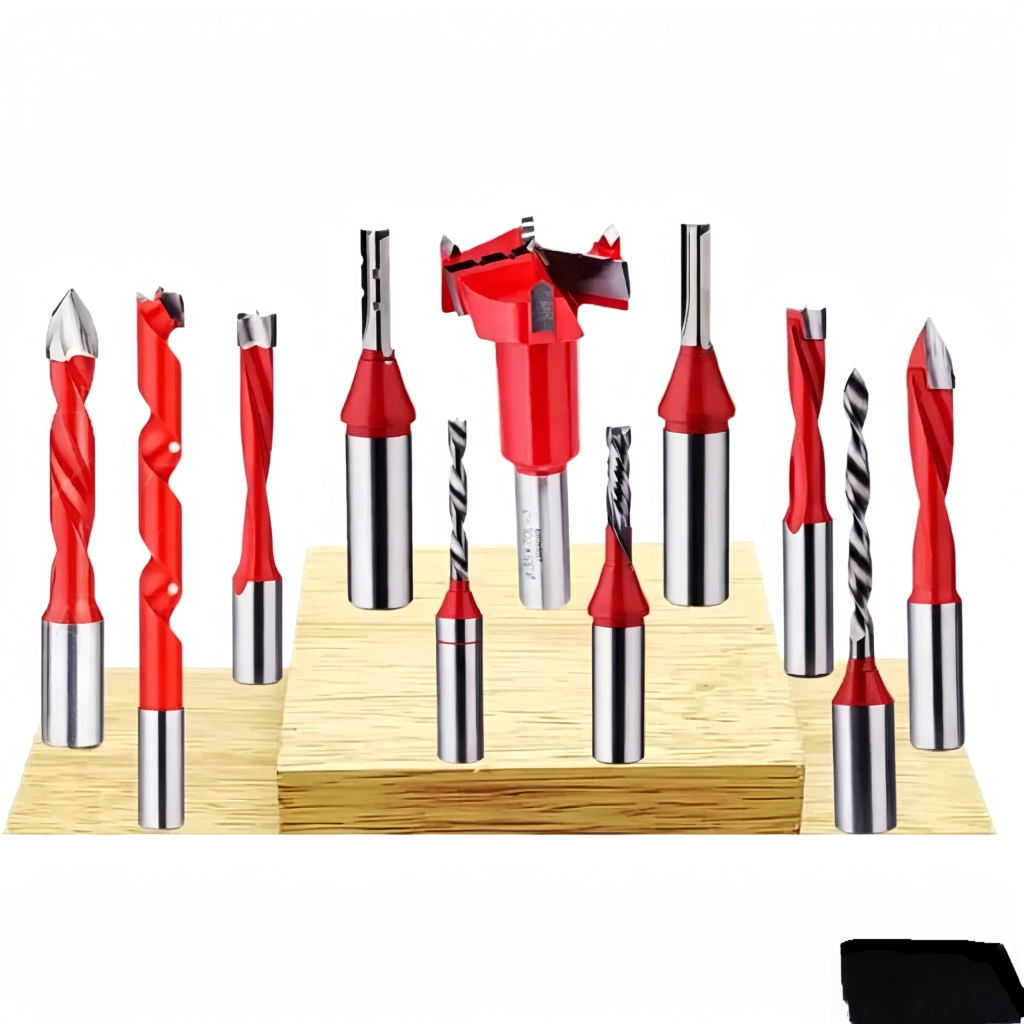

Solid Carbide Hinge Boring Bits for Precision Wood Engraving
