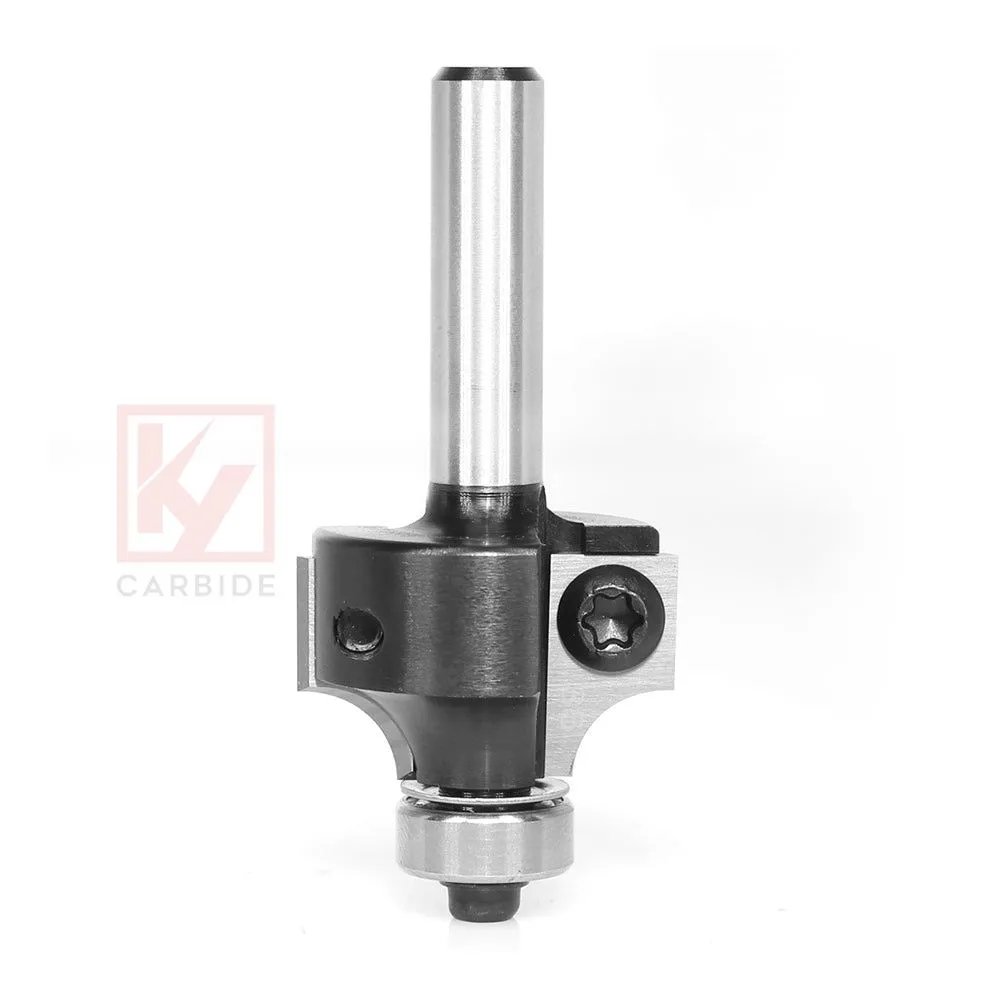

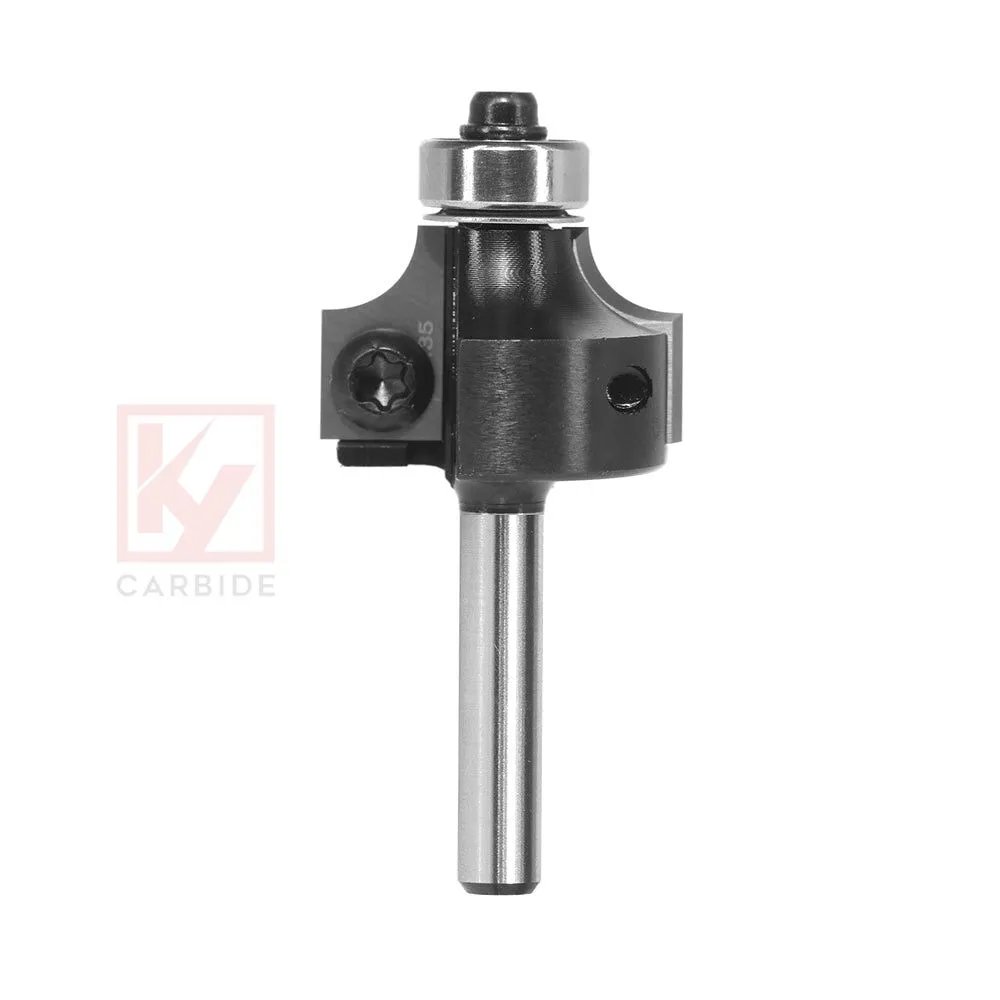

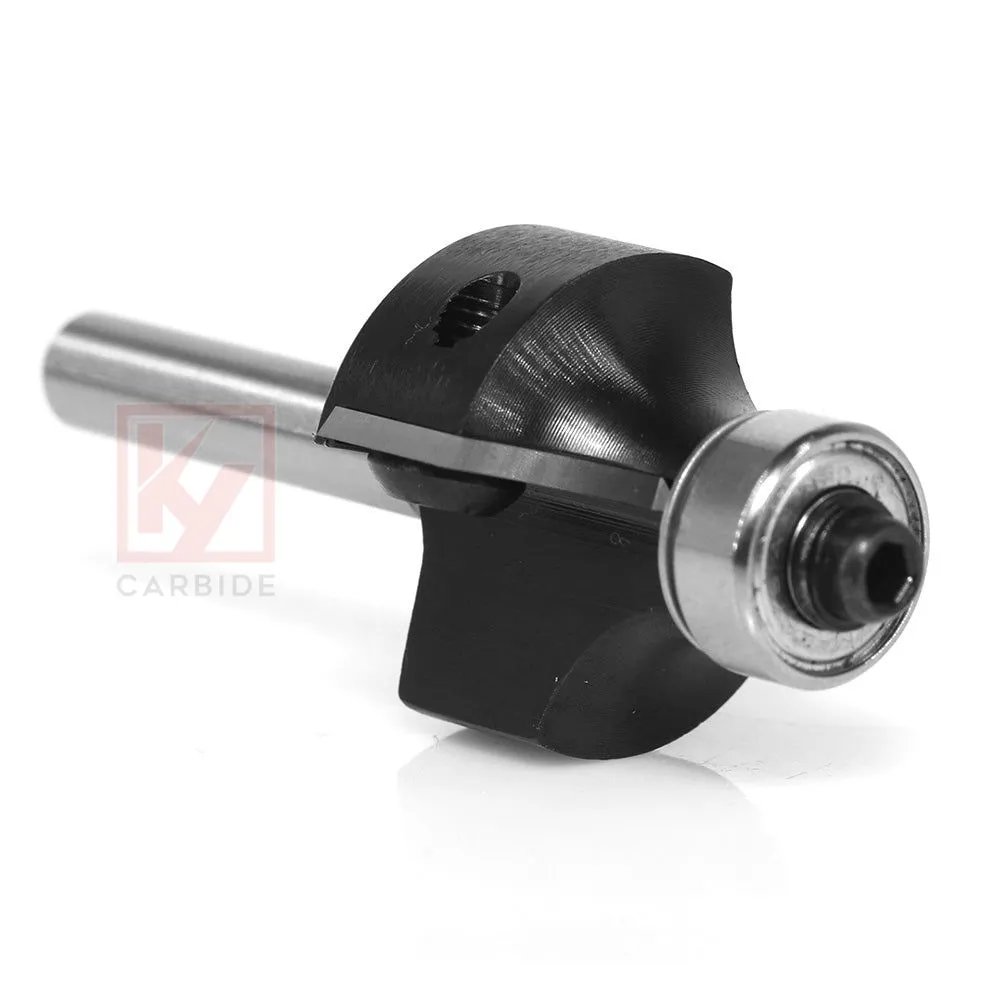

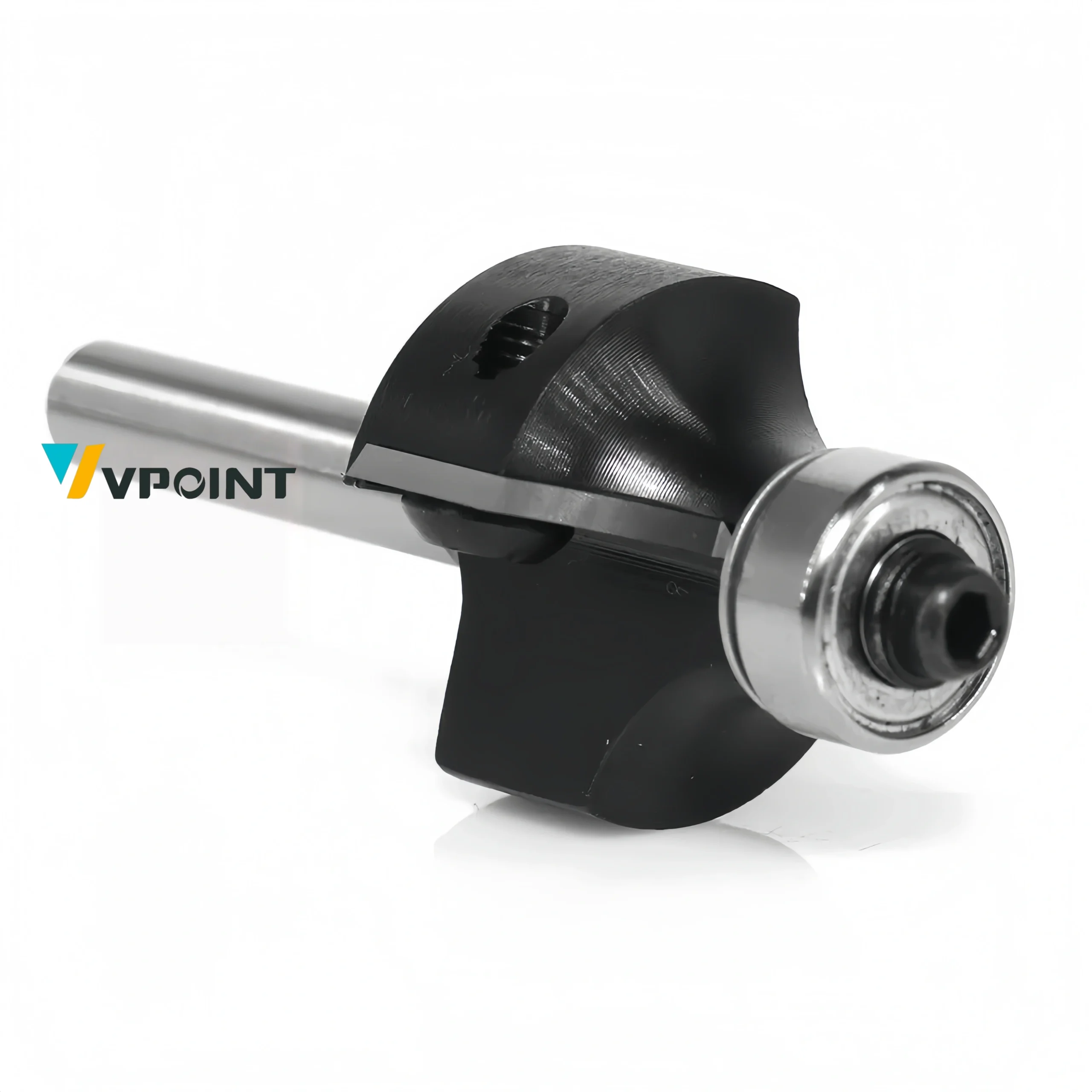

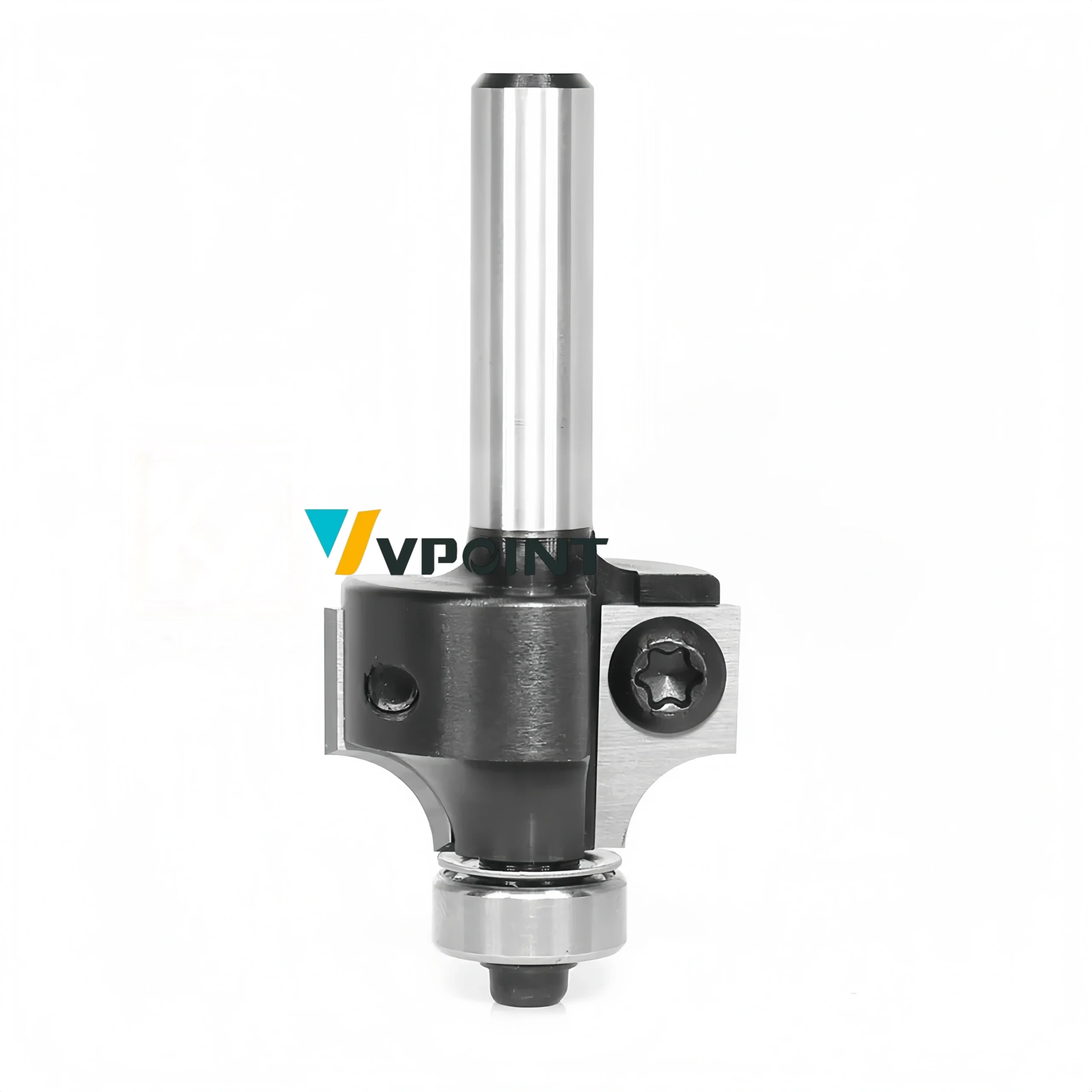

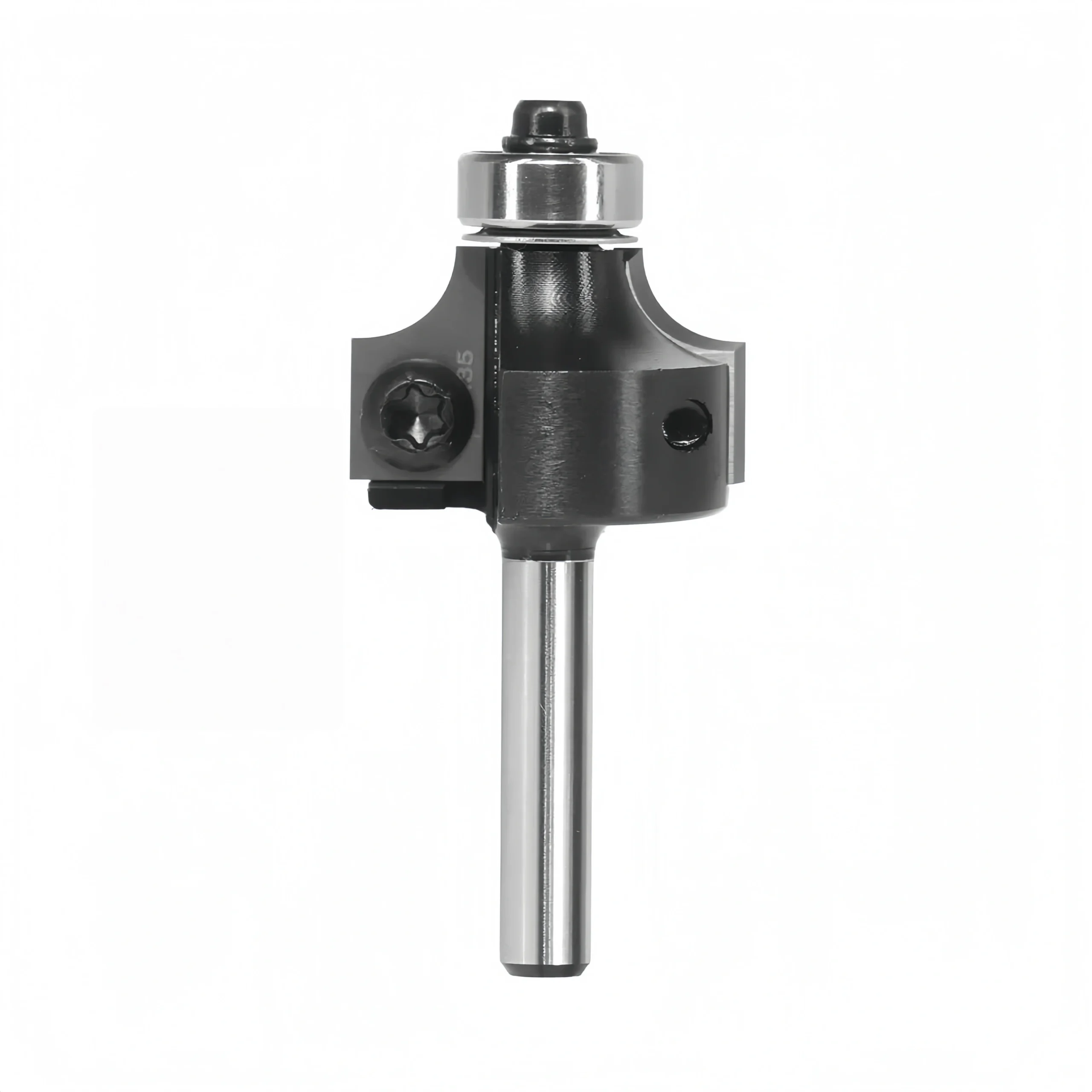

Radius Corner Round Router Bit with Insert
The corner round router bit is perfect for adding a rounded profile, creating smooth edges on doors, cabinets, frames, and more. With replaceable carbide insert knives, it’s a cost-effective option. We offer a variety of edge-forming router bits to suit different project requirements.
The corner round router bit is perfect for creating rounded profiles, producing smooth and rounded edges on doors, cabinets, frames, and more. Its replaceable carbide insert knives make it a cost-effective choice. We offer a variety of edge-forming router bits to cater to different project needs.
Features:
- Constructed from industrial-grade tungsten carbide material, providing durability and strength.
- Ideal for creating a corner round shape on various projects.

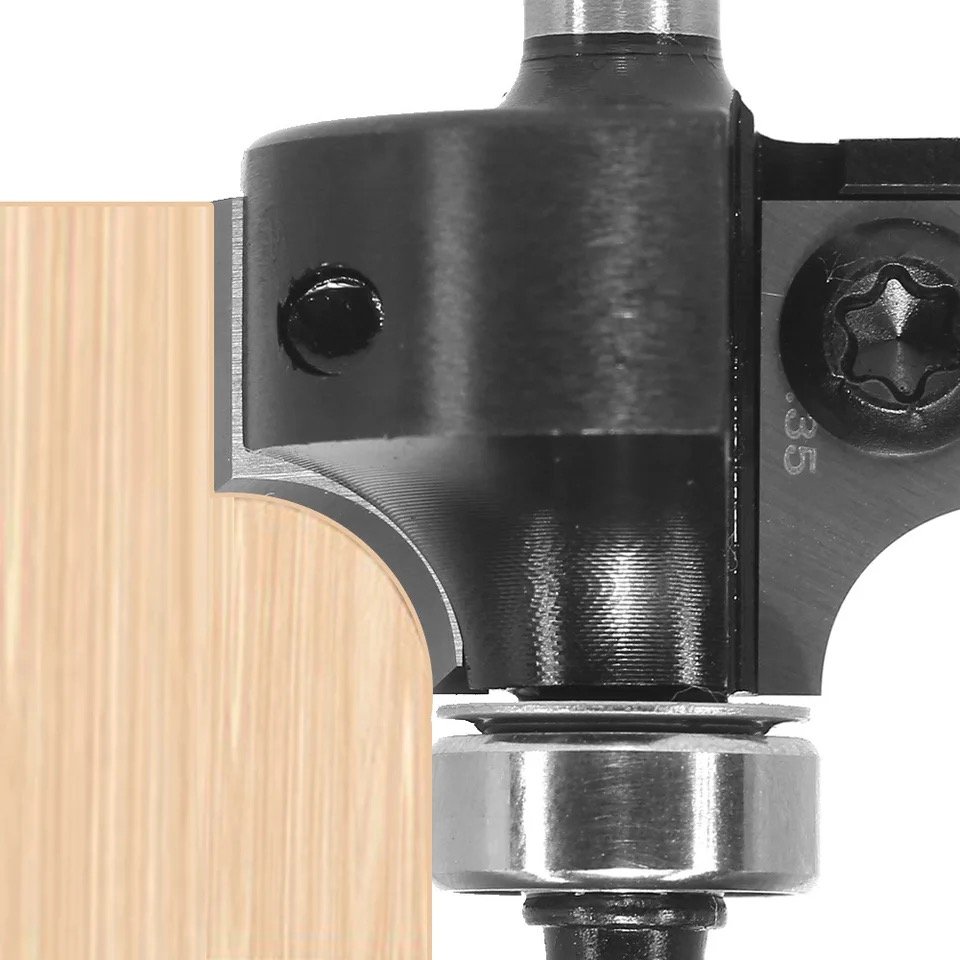

- Equipped with a bottom bearing to guide the bit along the workpiece, ensuring a stable cutting process.

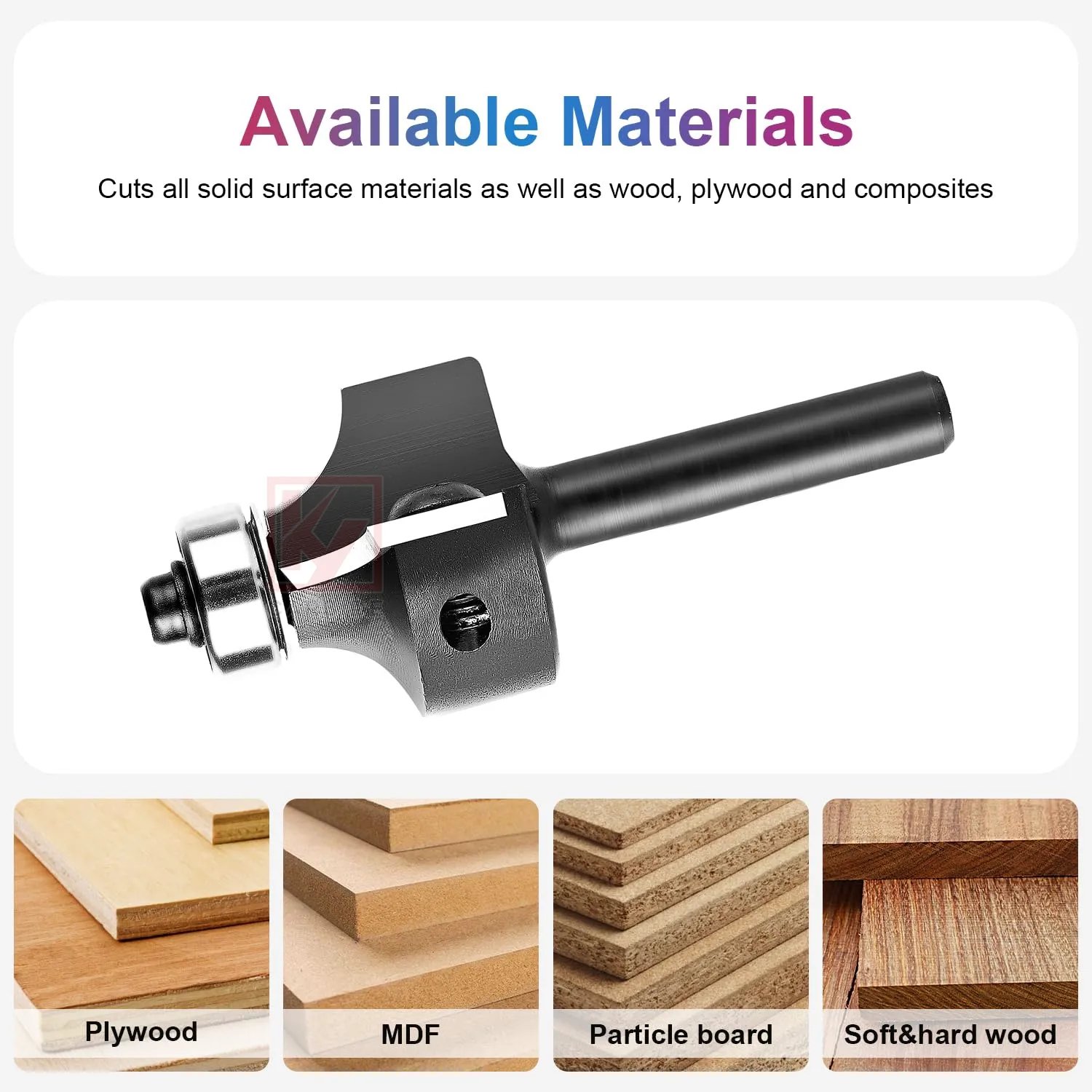

- Suitable for use on softwood, hardwood, plywood, and more.

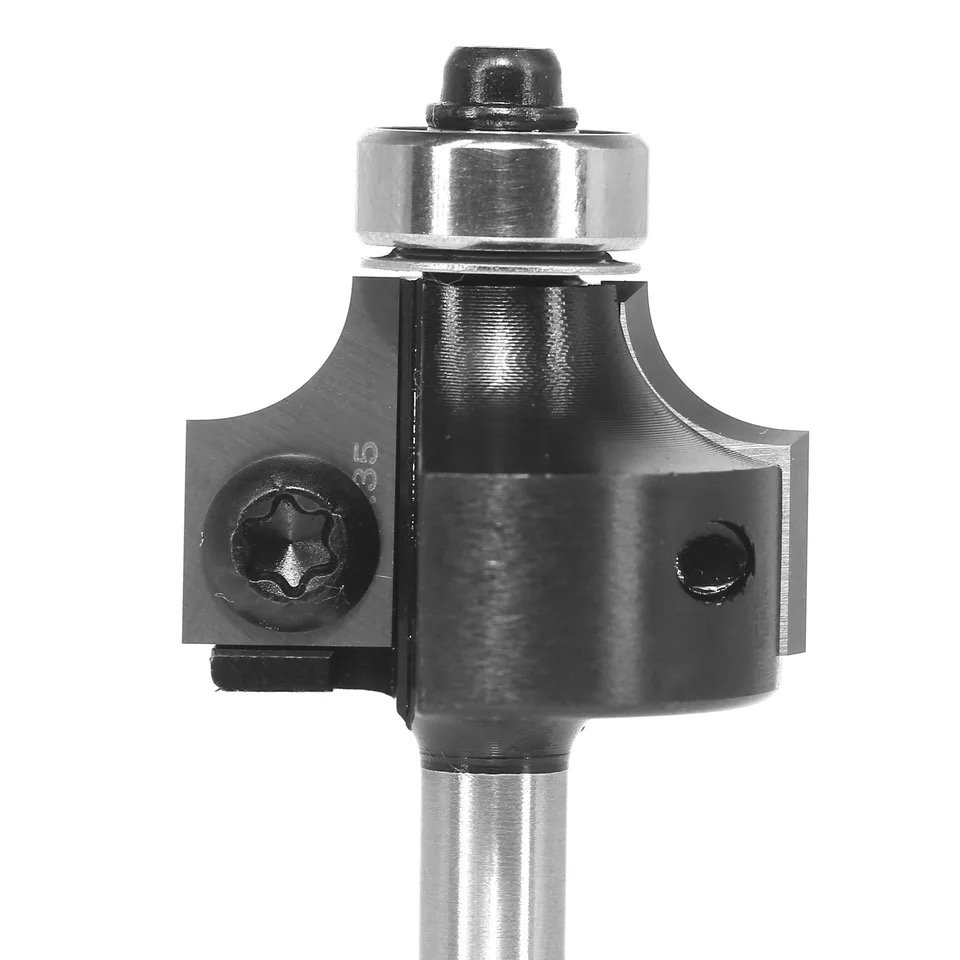

- Sharp carbide insert delivers a smooth finish and precise cutting.

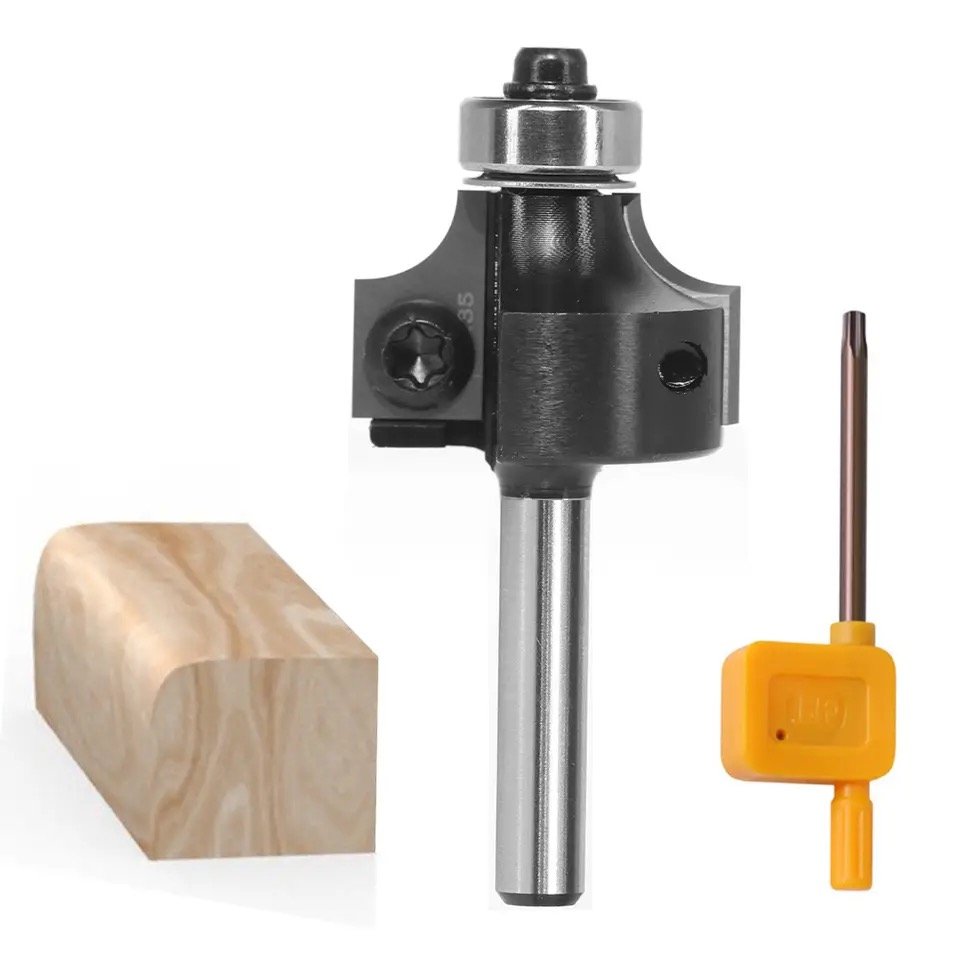

- Easy-to-replace blade design for extended tool life and cost savings.
Carbide Blade Specification:
- Dimensions: 15.9 x 9 x 1.5 mm
- Angle: 30°
- Radius: 6.35 mm

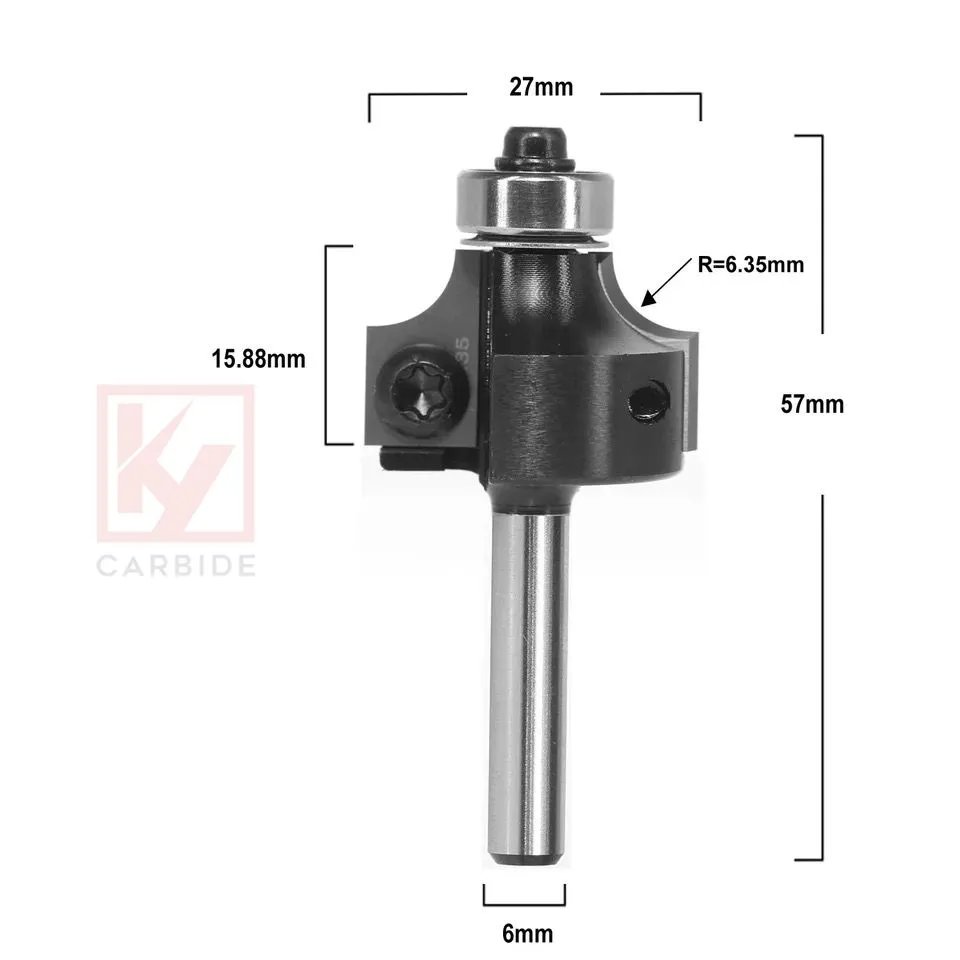

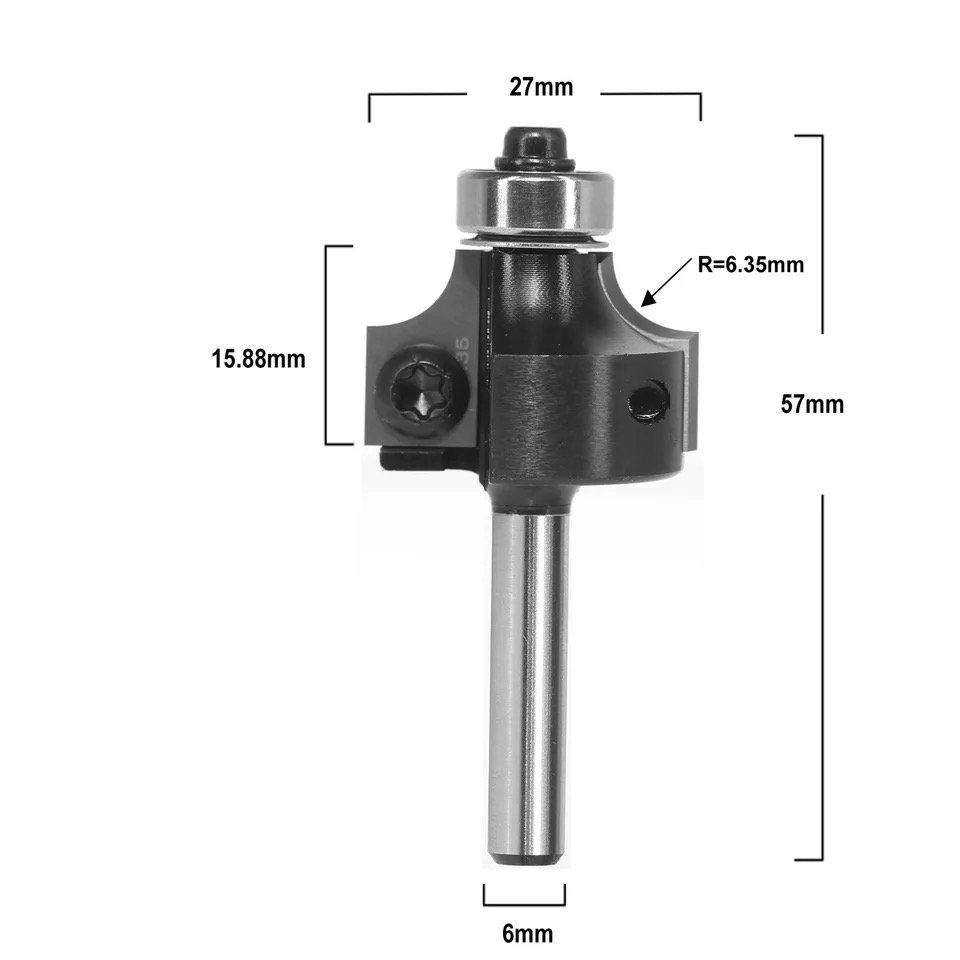

Other Specification
| Product Code | Product Specifications | Diameter | Shank | Cutting Length |
Tooth shape | Alloy Insert Specifications |
| D | d | L | T | |||
| KY025-01 | D27*d6.35*L15.9R6.35*2T | 27 | 6.35 | 15.9 | 15.9*9*1.5*R6.35 | |
| KY025-02 | D27*d8*L15.9R6.35*2T | 27 | 8 | 15.9 | 15.9*9*1.5*R6.35 | |
| KY025-03 | D27*d8*L15.9R2*2T | 27 | 8 | 15.9 | 15.9*9*1.5*R2 | |
| KY025-04 | D27*d8*L15.9R3*2T | 27 | 8 | 15.9 | 15.9*9*1.5*R3 | |
| KY025-05 | D27*d8*L15.9R4*2T | 27 | 8 | 15.9 | 15.9*9*1.5*R4 | |
| KY025-06 | D27*d8*L15.9R5*2T | 27 | 8 | 15.9 | 15.9*9*1.5*R5 |
Applications

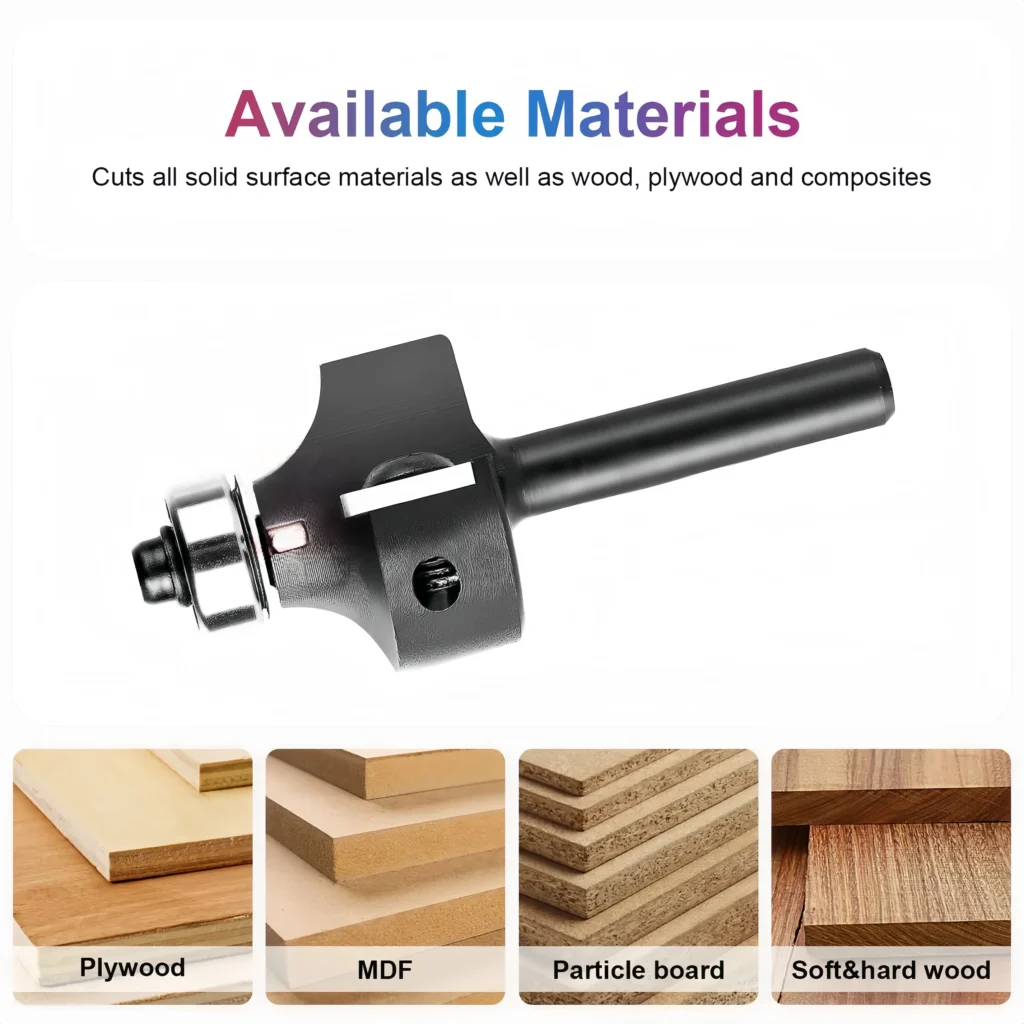

- MATERIAL USE. plywood, OAK, MDF, other hardwood materials, laminates and soft metals.
- PERSONAL AND INDUSTIAL USE. Premium Carbide and high quality steel, suit for CNC and other automatic routers, hand-held , table-mounted portable routers also.
